Galvanized Swedged Wiggle Wire Lock Channel, Greenhouse Spring Lock Profile
This Lockup® Galvanized Swedged Wiggle Wire Lock Channel is widely used to fasten poly film,Insect nets and/or shading screen to your greenhouse.
Wiggle Wire Channel Connecting Method:
1. Using the Swedged Wiggle Wire Channel
2.Using the Channel Connector
Specification
How to Use
Product Presentation
Core Product Advantages (Why It Outperforms Competitors)

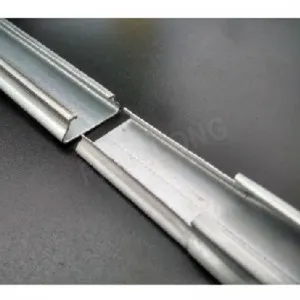

Seamless Swedged Connection (No Connectors Needed)
The precision-engineered swedged end allows one lock channel to slide directly and tightly into the next piece. This male-female interlocking design guarantees an easier connection, eliminates uneven gaps that could tear greenhouse plastics, and slashes on-site assembly time by up to 30%.
Scientific Internal Angle Design
Featuring our signature internal geometry, the profile ensures that when wind lift forces act upon the greenhouse film, the spring wire locks even tighter inside the track. It provides an absolute firm lock that resists severe weather without slipping out of the channel.
Superior Anti-Corrosion & Long Lifespan
Manufactured from top-tier structural steel with heavy zinc coating, this spring lock profile delivers exceptional corrosion resistance. It is built to endure the extreme humidity, pesticide sprays, and condensation common in modern commercial farming environments.
Dual-Material Holding Capacity
The optimized, deep-set Wiggle Wire U-channel architecture is spacious enough to hold both your heavy-duty poly film and a secondary layer of shading cloth or insect netting under a single piece of wiggle wire.
Technical Data Table for B2B Procurement
| Parameter | Technical Standards |
| Profile Type | Swedged / Swaged End (Male to Female Interlocking) |
| Base Material | Prime Galvanized Steel Sheets (Shougang Steel) |
| Zinc Coating Weight | $\ge 150 \text{ g/m}^2$ to $275 \text{ g/m}^2$ (Customizable per project) |
| Standard Length | 3.0m / 4.0m / 6.0m per piece |
| Wind Load Capacity | Up to 120 km/h when paired with high-tensile spring wire |
| Global Track Record | Trusted and exported to more than 40 countries |
