Non-Galvanized Full PVC-Coated Wiggle Wire for Greenhouse Poly Film Locking System

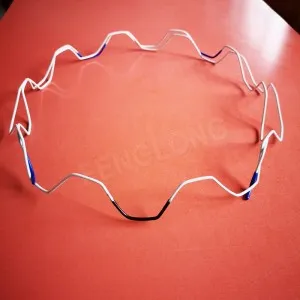

Non-Galvanized Full PVC-Coated Wiggle Wire (B5 Series)
The B5 Series Non-Galvanized Full PVC-Coated Wiggle Wire is a cost-effective fastening solution designed for securing greenhouse poly film, shade cloth, and insect netting. Manufactured with high-tensile spring steel and a full UV-resistant PVC coating, it offers reliable holding power, long service life, and excellent protection for greenhouse coverings.
Designed for commercial growers, nurseries, and greenhouse builders, this Non-Galvanized Wiggle Wire works seamlessly with standard lock channels to provide fast installation and secure film retention while reducing the risk of film damage.
Key Features
Full PVC Protective Coating
The entire spring wire is coated with premium UV-resistant PVC, protecting both the greenhouse film and the operator during installation.
High-Tensile Spring Steel Core
Manufactured from premium spring steel, the wire delivers excellent elasticity and maintains strong locking performance after repeated use.
Cost-Effective Alternative
Without a galvanized layer, the B5 Series provides an economical solution while maintaining dependable performance for many agricultural applications.
UV & Weather Resistant
The engineering-grade PVC coating helps resist UV exposure, moisture, and agricultural chemicals, providing a service life of over five years under normal conditions.
Wind-Resistant Locking
When used with compatible wiggle wire channels, the system securely holds greenhouse coverings even under demanding weather conditions.
Rounded Edge Design
Smooth PVC-coated ends reduce the risk of puncturing greenhouse films and improve installation safety.
Applications
Suitable for securing:
- Greenhouse Poly Film
- PE Greenhouse Covers
- Shade Cloth
- Insect Netting
- Bird Netting
- Tunnel Greenhouses
- Hoop Houses
- Cold Frames
- Nursery Structures
- Agricultural Growing Systems
Product Advantages
- Economical greenhouse fastening solution
- Full UV-resistant PVC coating
- High spring elasticity
- Reusable for multiple growing seasons
- Protects greenhouse film from tearing
- Fast installation with lock channels
- Low maintenance
- OEM & ODM services available
Technical Specifications
| Item | Specification |
|---|---|
| Material | High-Tensile Spring Steel |
| Surface | Full PVC Coated |
| Color | White |
| Series | B5 |
| Wire Diameter | 2.0 mm / 2.3 mm |
| Length | Customized |
| UV Resistance | Yes |
| Reusable | Yes |
| Compatible With | Standard Wiggle Wire Channels |
| Typical Service Life | 5+ Years* |
*Service life depends on operating environment and installation conditions.
Why Choose Our B5 Wiggle Wire?
- Factory-direct manufacturing
- Stable spring performance
- UV-stabilized PVC coating
- Consistent quality control
- Bulk wholesale supply
- OEM customization
- Fast global delivery
- Technical support for greenhouse projects
Frequently Asked Questions
What is non-galvanized wiggle wire used for?
It is used to lock greenhouse poly film, shade cloth, and insect netting into wiggle wire channels for secure greenhouse covering installation.
Why choose full PVC-coated wiggle wire?
The full PVC coating improves UV resistance, protects greenhouse film from scratches, and extends the product's usable life compared with ordinary coated wire.
Can it be reused?
Yes. The spring steel core maintains elasticity, allowing the wire to be removed and reused for multiple installation cycles.
Is it compatible with standard lock channels?
Yes. The B5 Series is designed to work with standard aluminum and steel wiggle wire lock channels.
Japanese Technology：
The Vinipet® Wiggle Wire was initially designed for exporting to Japanese partner of Toto Kogyo Co.,Ltd according to their strict standard of Eight Terms Inspection, Using special Spring Steel with imported Engineering Plastic Power, they have been exporting to Toto Kogyo for 18 years.
1、 Japanese Production Line
2、 Japanese and Chinese Technical Cooperation Enterprises
Longer Lifetime and Anti-Aging Solution:
1 Premium Engineering Plastic Power:
2 Anti-aging Resin Attached External:
Eight Terms of Inspection Procedure:
Thicker and Rounded Ends Design
1、 To ensure easy and faster installation while simultaneously preventing tears
2、 Thicker and Rounded Ends PVC Coating to further reduce the chance of tear
3、 Hands-Friendly,Care for the operator
Test Introduction of Simulated Wind Pressure
Testing in 1 sqm of area, use VINIPET® B6 wiggle wire to lock film in wiggle wire channel, Maximum load 580kgs, 290kgs load bared on one pipe of wiggle wire.
It works well. Considering 133Kgs/sqm for load capacity of 14 grade wind, Wiggle wire withstanding 14 grade wind should bear load of more than 260kgs.
Comparison Introduction Of Glancing Flatness：
It is proved that VINIPET® B6 wiggle wire distorts less than common one when they are taken out of wiggle wire channel.
Selling Point：
1、 PVC Coated Wiggle Wire will take care of the film and operator
2、 6.5 ft. of PVC coated steel , thickness of 0.083”
3、 Work with locking channel (sold separately)
4、 Applicable for all kinds of film greenhouse
5、 Tightly fix the poly film or shade screen to the locking channels with minimal effort
6、 Special 82B spring steel wire, the wire may be used many times without distortion.
Why most buyers choose VINIPET® Wiggle Wire ?
l Factory direct sales, we are the manufacture!
l Large stock, Fast delivery!
l Over 20 years' experiences, top quality with moderate price!
l The technical consulting service and operation guidance can be provided!
l Customization is also available in high demand!
l 6 years guarantee, best after-sale service!
Inventor and Patent Owner of White Color Wiggle Wire, Fenglong Invented and Put the White Color into Manufacturing at the first time in the world.
As we all know, the white color absorb very little heat, which longer the lifetime.
Fenglong is also the real standard setter of wiggle wire in China, Participated in drawing up the standard of wiggle wire in agricultural equipment of JB/T 13080-2007
Choose original, use Vinipet, Quality-assured
Anti-fake Mark for The VINIPET® Wiggle Wires
B5B-23
B5B-20
The Appearance of VINIPET® Wiggle Wires for B5B-23
B5B-23
B5B-20
Specification
How to Use
Carton Packing
Product Presentation
Wiggle Wire Using Tips
